We are an approved supplier to numerous European railway companies, tram networks, and private rail operators.
Description:
The EW series of electrical switch heating systems keep the moving parts of switches free of snow and ice.
Profiles:
13 × 5.5 mm
12 × 6 mm
Tube materials:
1.4541, 1.4876, 2.4858, and Monel 400

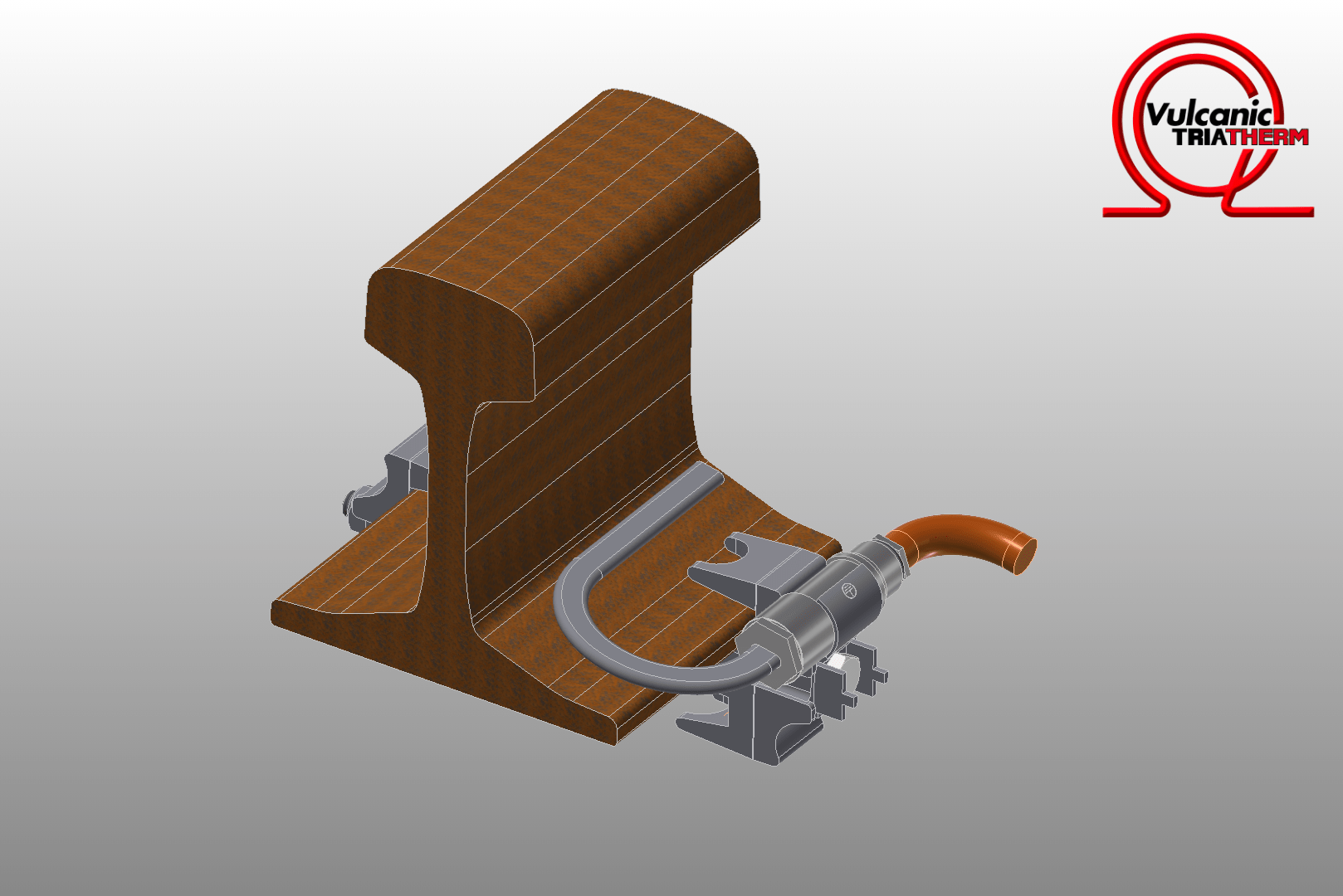

Switch heating systems are manufactured in accordance with the technical specifications of national and international rail companies.
Depending on the function of the heating elements, we distinguish between:

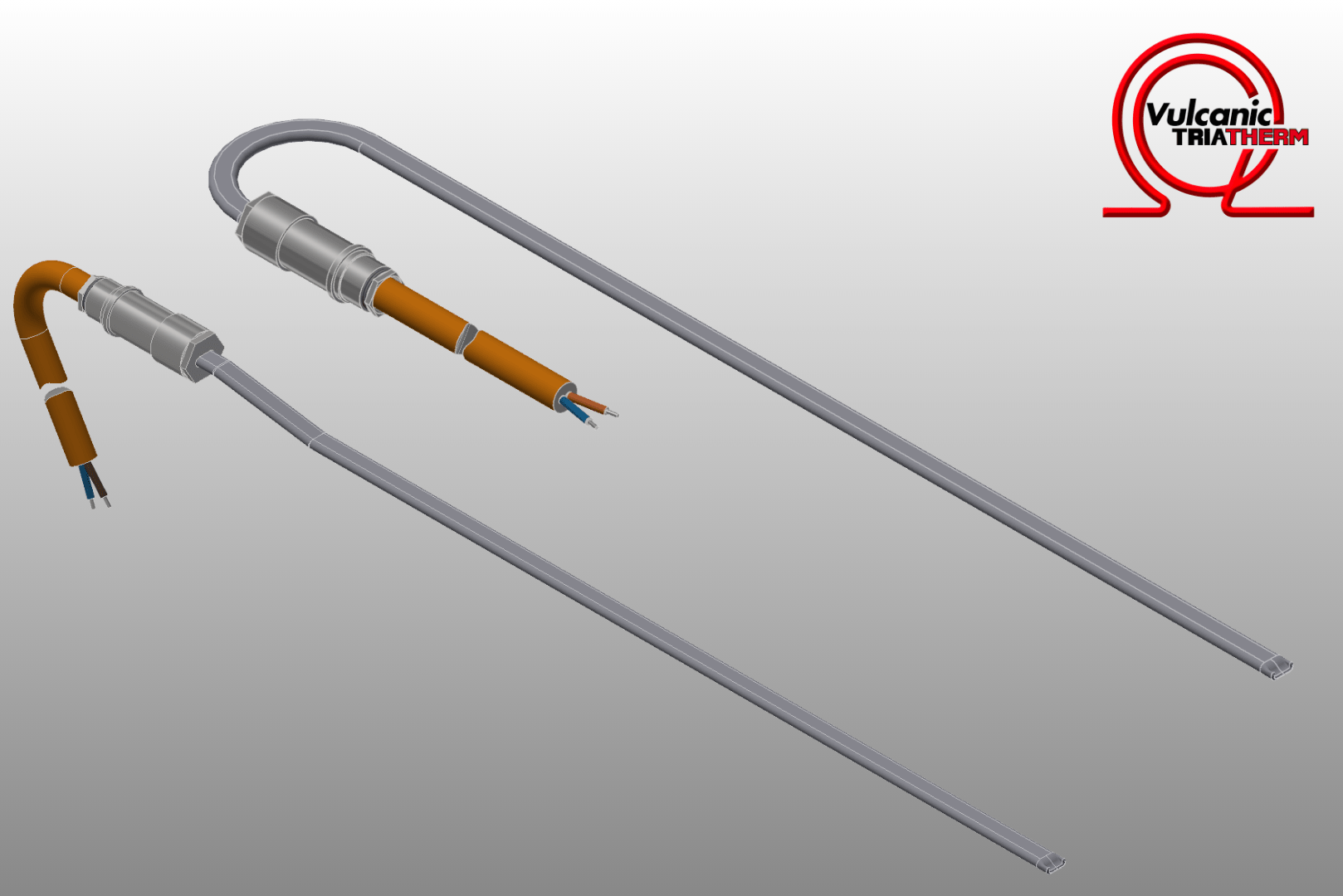

Heating elements for switch blades, switch points, and crossing hearts

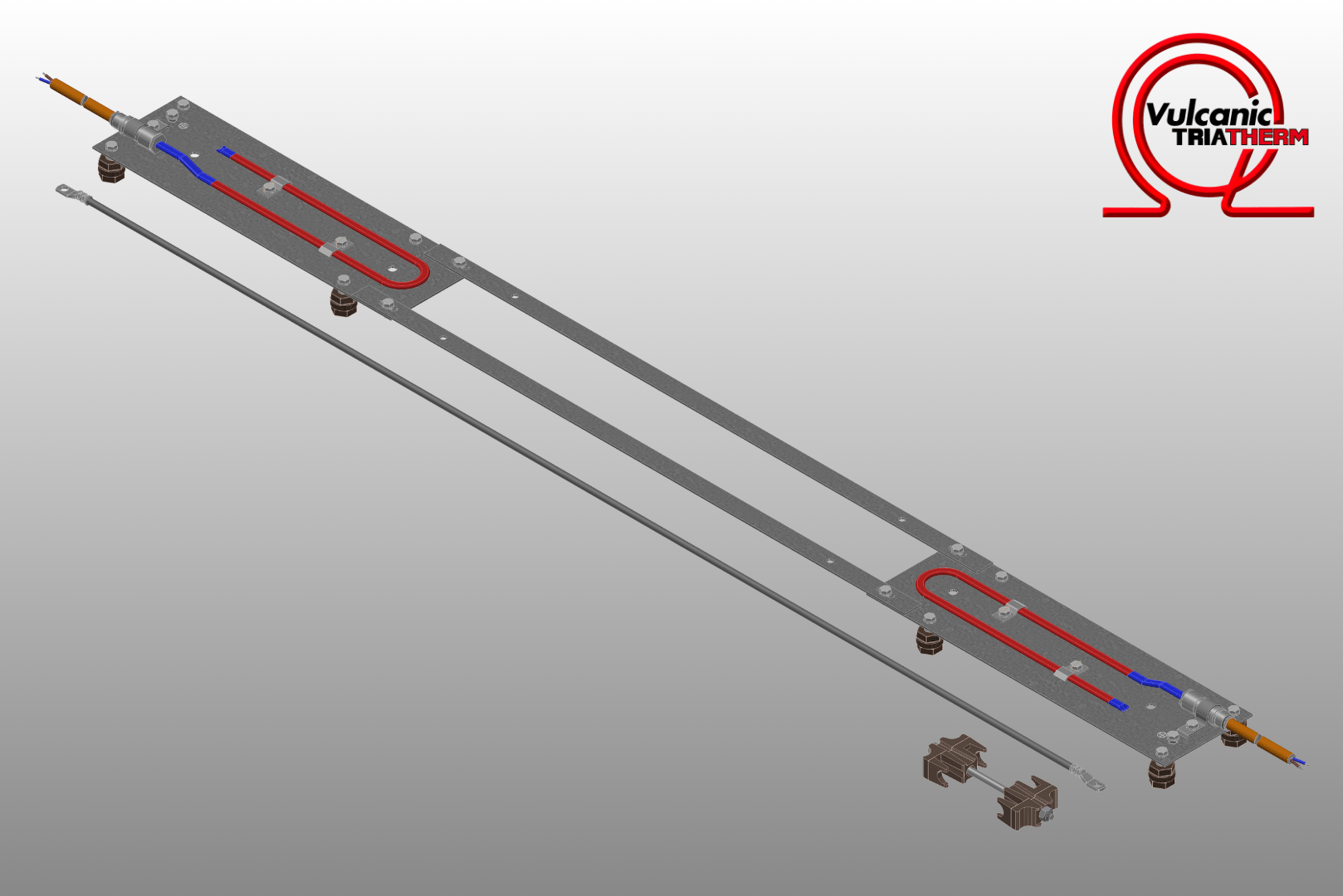

Heating for locking compartments: 2 × 250 W / 2 × 450 W
We also supply mounting accessories, such as:

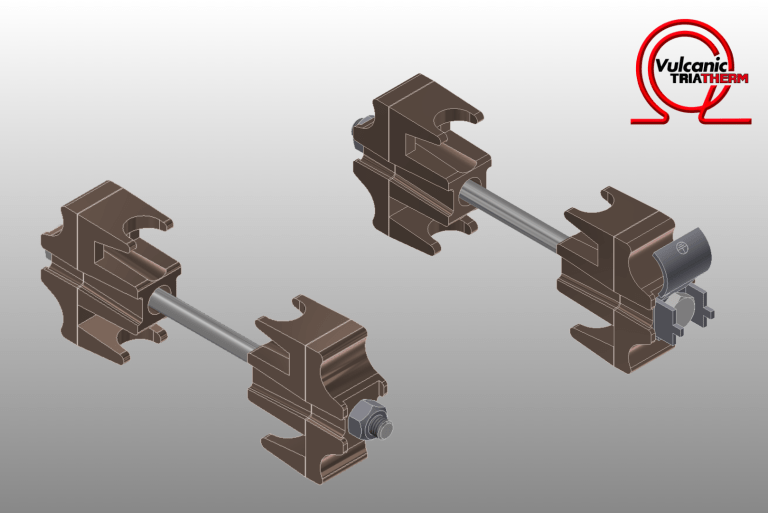

- Mounts for Connection Heads

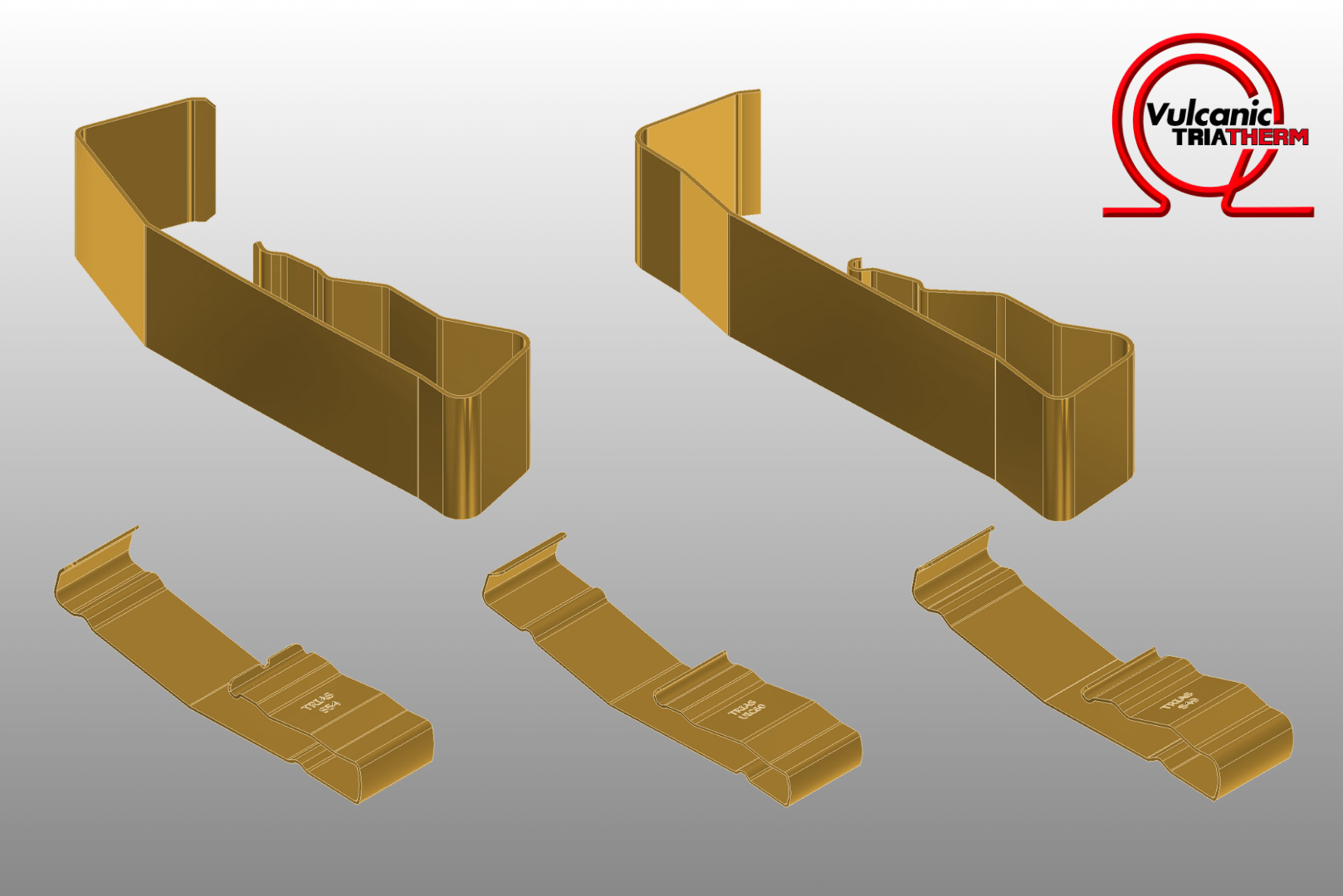

- Clamping brackets for all rail profiles
- Protective plates for service grounding
- Temperature sensor for rail
